Large Embankment Net

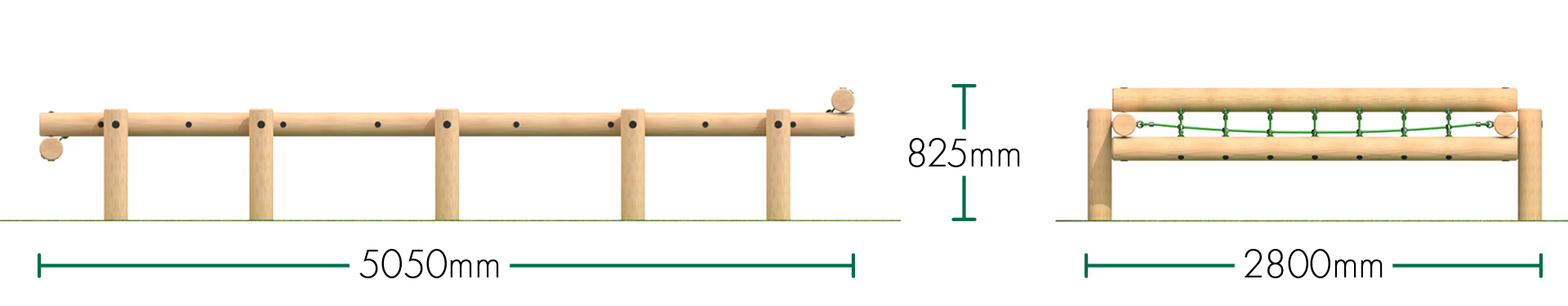

Technical Data

Length: 5050mm
Width: 2800mm
Height: 825mm
Free Fall Height: 825mm

Net Size: 4750mm x 2200mm

Safety Surface Area Required: 44.42m2
Safety Surface Dimensions: 8.03 x 5.8m

All measurements are given based on a flat installation.

Recommended maximum angle for embankment is 30 degrees.

Also available with Steel Feet - (Additional charges apply)

This product has been independently tested by The Play Inspection Company and conforms to the requirements of BS EN 1176:2017. Certificate available on request.
