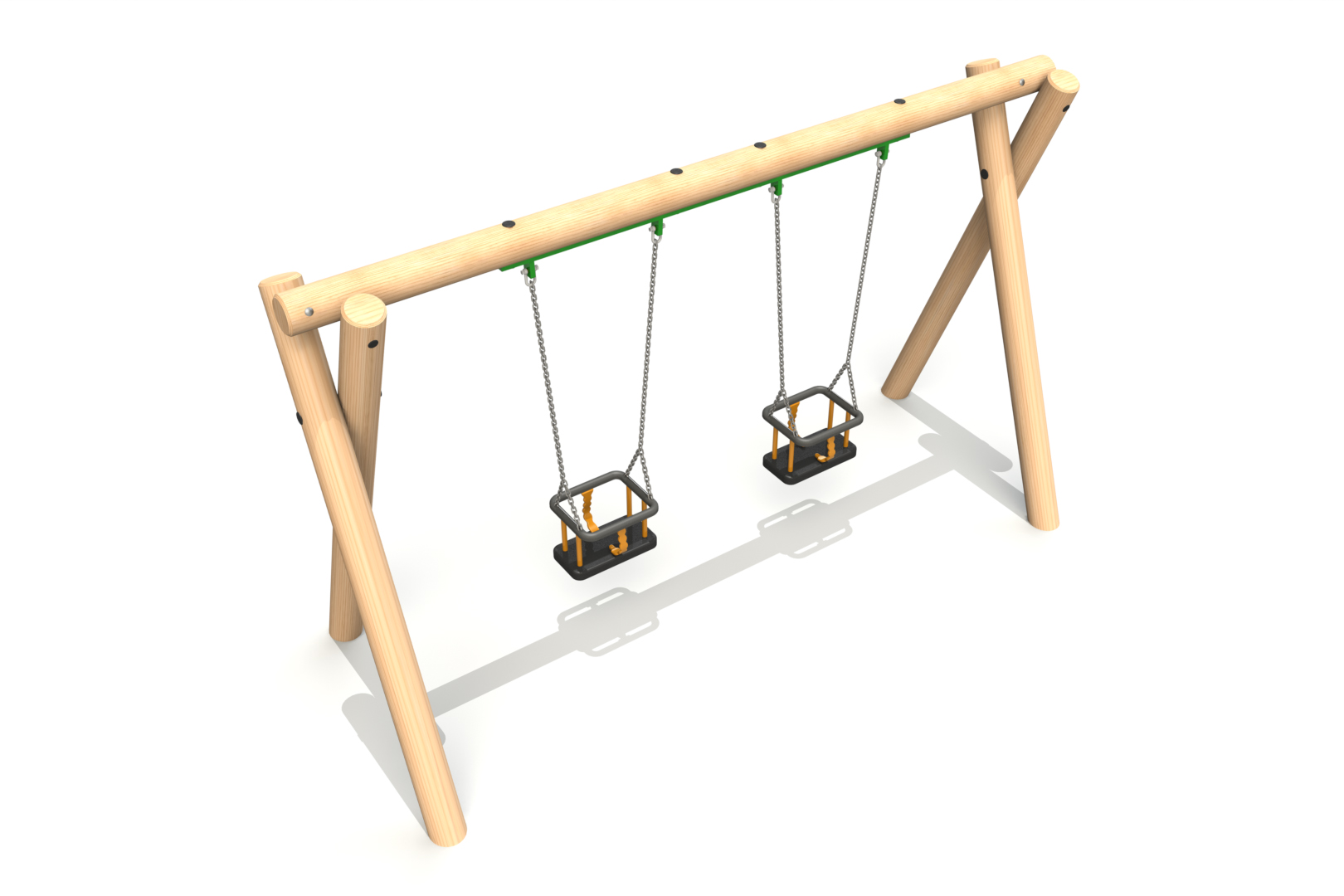

Single Bay Timber Swing - 2 no. Cradle Seats (2m)

Single Bay Timber Swing with 2 no. Cradle Rubber Swing Seats (2m).

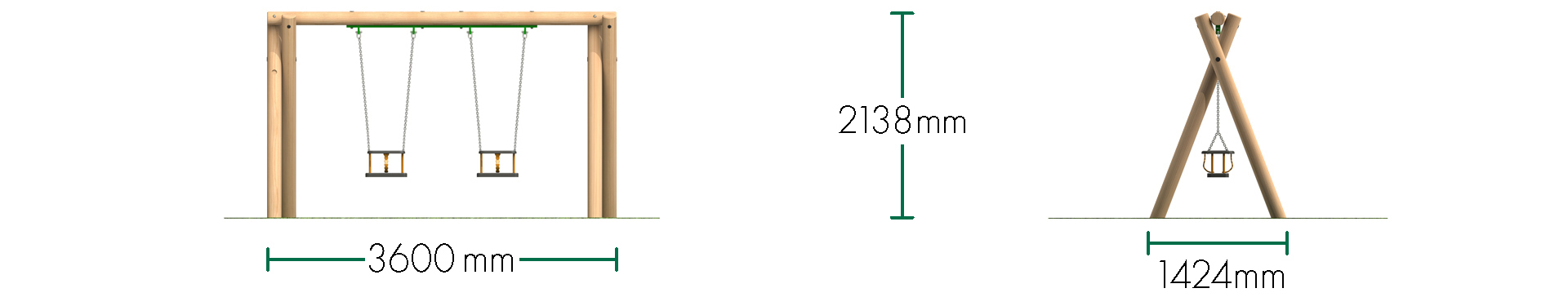

Length: 3600mm
Width: 1424mm
Height: 2138mm
Free Fall Height: 1200mm

Also available with Steel Feet (Additional charges apply).

Safety Surfacing Area Required: 17.43m2
Safety Surface Area Dimensions: 6.052 x 2.88m

Safety surface area dimensions above are for wet pour surfacing (synthetic). If loose fill is being used the length needs to be increased to 7.052m (from 6.052m) to allow an extra 500mm of surfacing at either end.

Additionally for a wet pour impact area that is level with the surrounding surface, there must be an additional area with a length of 500mm in the direction of the swing free from obstacles.
